Validation has become one of the biggest challenges in ADAS/AD development. The challenge is not only collecting high-quality data. Modern vehicle fleets can generate thousands of hours of recordings every week. The real challenge is transforming those recordings into trustworthy validation evidence quickly, repeatedly, and at scale.

As ADAS functions become more sophisticated, validation teams must prove performance across an ever-growing range of road types, traffic situations, weather conditions, and geographies. Whether validating Adaptive Cruise Control (ACC), Autonomous Emergency Braking (AEB), Lane Keeping Assist (LKA), Intelligent Speed Assistance (ISA), or Emergency Lane Keeping (ELK), the amount of data required continues to increase. At the same time, software development cycles are accelerating. New releases are arriving weekly or even daily, leaving less time for traditional validation workflows. Collecting data is no longer the bottleneck. Extracting value from that data is.

This is where integrated data pipelines become critical. By connecting data collection, annotation, curation, traceability, and evaluation within a single workflow with aiData, validation teams can shorten development cycles while improving confidence in the results.

The growing validation challenge

The validation landscape is changing rapidly, driven by three interconnected trends: the need for reliable ground truth, the explosion of available data, and increasing regulatory expectations for measurable evidence.

Perhaps the most fundamental challenge is generating trustworthy reference data. Every validation result depends on the accuracy of the ground truth against which the system is measured. Traditionally, this has required extensive manual annotation efforts, often making labeling one of the largest cost drivers of a validation program. Besides the cost, manual labeling may introduce subjective differences that reduce the repeatability of validation results and can become difficult to scale when processing thousands of driving hours.

At the same time, organizations are accumulating vast amounts of data. Ironically, having more recordings does not necessarily make validation easier. Many teams already possess the scenarios they need but struggle to find them efficiently. Searching through enormous datasets for specific situations such as cut-ins, construction zones, or nighttime pedestrian interactions often consumes significant engineering effort.

Adding further complexity is an evolving regulatory environment. ADAS/AD regulation is increasingly shifting from function-level testing toward lifecycle-oriented safety assurance. UN R171 (DCAS), UN R157 (ALKS), UN R152 (AEB), and a newly adopted UN Global Technical Regulation increasingly emphasize structured validation, traceable data, and evidence from physical, virtual, and real-world testing. As a result, demonstrating safety requires more than passing predefined tests; developers must provide measurable evidence of system behavior, operational boundaries, human–machine interaction, and performance across relevant scenarios. A similar shift is visible in Euro NCAP’s 2026 protocols, which combine controlled testing with real-world evaluations. For example, Speed Assistance Systems are assessed on public roads against an independent multimodal reference system. While these frameworks differ in scope and legal status, they share a common direction: ADAS/AD safety claims increasingly require structured, measurable, and reproducible evidence. This creates a growing need for scalable data and evaluation workflows that turn raw sensor recordings into structured validation datasets and traceable safety evidence.

To meet these challenges, validation workflows require significantly higher levels of automation than they did just a few years ago. In the following sections, we explore how the aiData pipeline supports validation activities end-to-end: starting with the collection of high-quality reference data, continuing with scalable ground-truth generation and efficient scenario discovery, enabling full traceability throughout the data lifecycle, supporting both perception- and vehicle-level validation, and finally providing automated KPI reporting and benchmarking for every software release and candidates.

Validation is only as good as the data behind it

Most validation discussions focus on metrics and KPIs. In reality, validation quality is determined much earlier, during data collection.

Even a sophisticated evaluation framework cannot compensate for poor input data. Small calibration errors can distort object positions. Synchronization drift between sensors can invalidate sensor fusion results. Recording failures often remain unnoticed until days later, when teams discover gaps in the collected dataset and must repeat expensive test campaigns. This is why aiData approaches validation from the very beginning of the workflow. The aiData Recorder focuses on ensuring data quality at the source through real-time sensor diagnostics, driver feedback dashboards, calibration management, synchronization monitoring, and automated quality checks. Instead of discovering problems after a test drive has finished, recording teams can detect and resolve issues immediately.

The objective is simple: only trustworthy recordings should enter the validation pipeline. aiData supports calibration accuracy of 0.1° and synchronization accuracy of 1 ms, helping teams establish confidence in the quality of their reference data from the moment it is recorded. Whether organizations deploy the plug-and-play aiData Rooftop Box or a custom-designed sensor setup, the goal remains the same: create a solid foundation for validation before processing even begins.

​​​​​

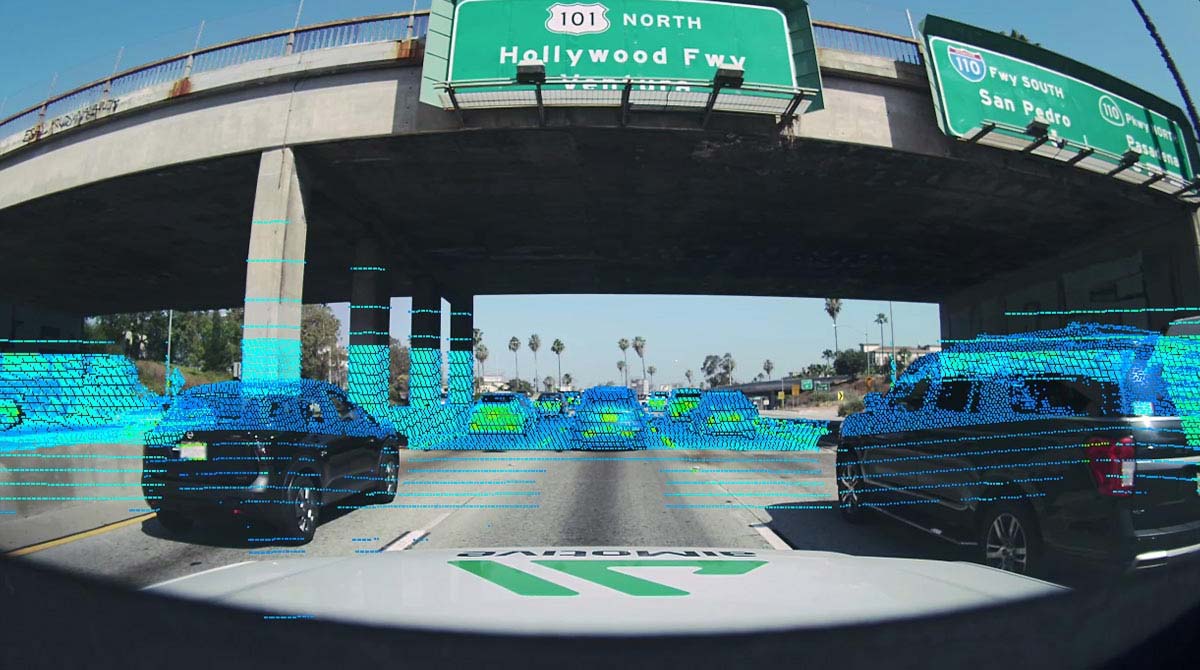

Creating ground-truth data at scale

Once data has been collected, the next challenge is generating reliable reference data. For a typical ADAS/AD validation campaign, this may involve thousands of driving hours, millions of tracked objects, and hundreds of edge-case scenarios. Historically, producing ground truth at this scale required large annotation teams and lengthy processing cycles. The problem is not only cost. Manual annotation can also introduce inconsistency, making it difficult to maintain objective benchmarks over time. aiData addresses this challenge through its Auto Annotator, which creates a comprehensive 3D representation of both the dynamic and static driving environment through several specialized annotation modules, including for vehicles, vulnerable road users, lane markings, road edges, traffic signs, traffic lights, and occupancy information. Rather than depending on labor-intensive manual workflows, validation teams can automatically generate reference datasets from their recordings.

The impact on validation efficiency can be significant. Instead of waiting weeks for annotations before an evaluation can begin, teams can create benchmark datasets automatically and repeatedly as software evolves. This supports a much more iterative validation process that aligns with modern software development practices. According to aiMotive's internal benchmarks, the Auto Annotator delivers approximately 95% precision and recall while achieving up to 400 times faster processing than manual annotation workflows.

Finding the Scenarios That Matter

One of the most surprising validation challenges is that many organizations are not suffering from a lack of data. They are suffering from an inability to find the right data. Validation engineers are often searching for very specific situations. A lane merge on a rainy morning. A pedestrian crossing at night. A rare speed-limit sign in a particular country. A hard braking event in dense traffic. When datasets grow to thousands of hours, manually reviewing recordings becomes impractical.

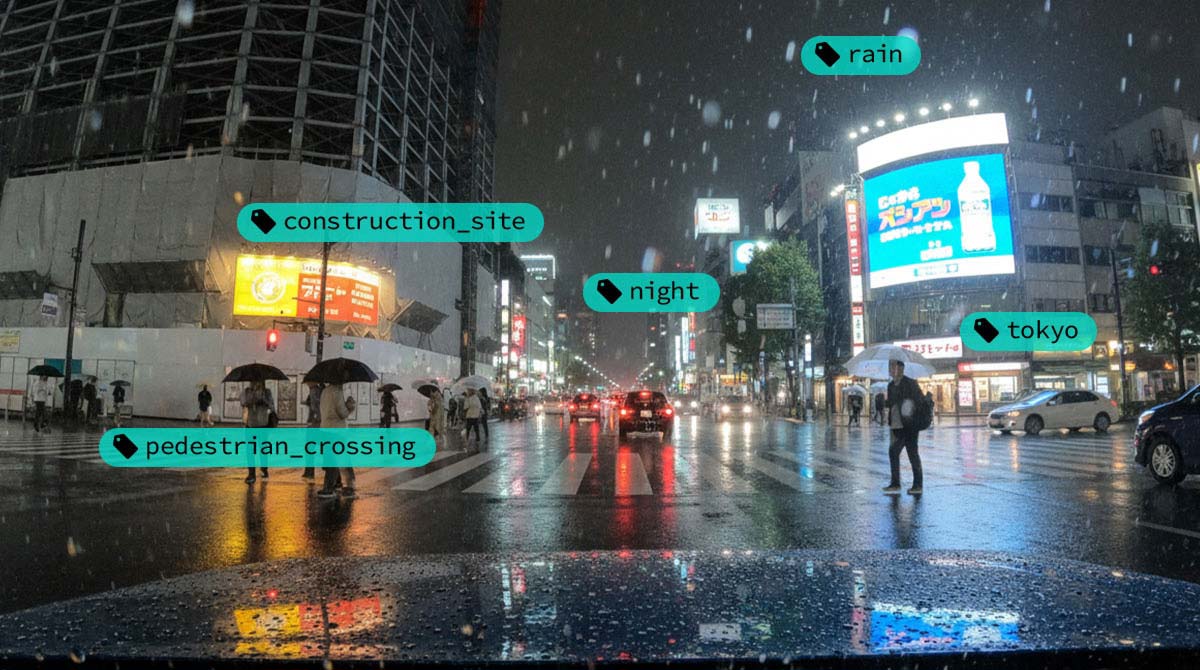

To address this problem, aiData combines multiple search approaches within a single platform. Engineers can search recordings using free text, images, videos, semantic meaning, visual similarity, annotations, or geographic criteria. Instead of relying exclusively on pre-defined tags, validation teams can interact with data in a much more intuitive way.

The value of such a system is not measured by how much data it stores. It is measured by how quickly engineers can identify the scenarios that matter most for validation. By reducing the effort required to discover relevant events, teams can spend less time looking for data and more time analyzing system performance.

Full Traceability Across the Validation Lifecycle

As validation becomes increasingly tied to safety assurance and regulatory evidence, reproducibility has become essential. A KPI is only useful if it can be traced back to the underlying data, processing pipeline, and software version that produced it. Without this traceability, root-cause investigations become difficult, benchmark results become harder to reproduce, and audit activities consume excessive engineering resources.

The aiData Versioning System addresses this challenge by tracking every stage of the data lifecycle. Raw recordings, metadata, annotations, datasets, processing pipelines, software versions, and evaluation results are all connected through a traceable workflow. This creates a complete chain of evidence linking collected data to final validation reports. When a performance change is detected, teams can identify exactly what changed and why. Likewise, regulatory and quality audits can be supported with transparent, reproducible records rather than manual documentation efforts.

Validation Happens at Multiple Layers

Validation is often discussed as a perception problem, but real-world ADAS validation extends far beyond object detection accuracy. Modern driving functions are complex systems whose performance can only be fully understood when evaluated from multiple perspectives.

A common challenge is that vehicle-internal data alone does not always provide an independent view of system performance. The outputs generated by the system under validation inherently reflect the system's own interpretation of the driving situation. Whether the underlying architecture is based on a traditional modular stack or an end-to-end AI approach, relying exclusively on internal outputs can make it difficult to objectively assess performance and understand the reasons behind specific vehicle behaviors. Independent reference data therefore plays a critical role in validation, providing an external representation of the environment against which the system's outputs and actions can be evaluated.

This is why validation workflows typically rely on an independent reference system, often referred to as ground truth or alternative perception. By generating a separate representation of the driving environment, developers gain an objective baseline against which both system outputs and vehicle behavior can be measured.

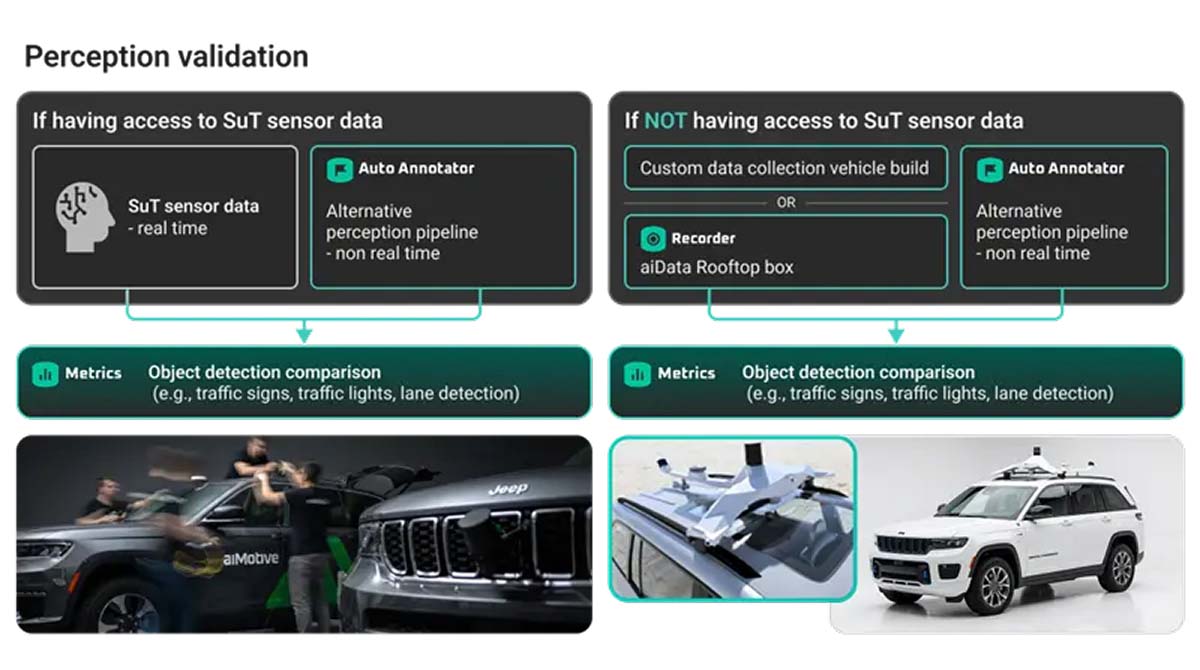

Perception Validation

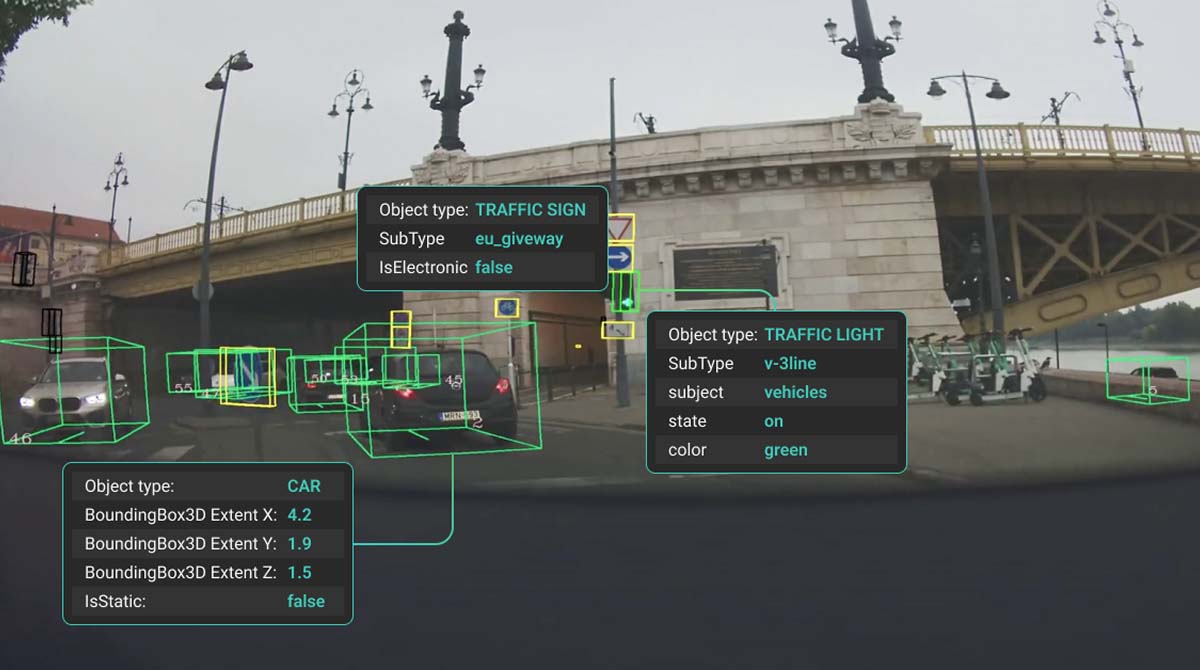

At the perception layer, the objective is to evaluate how accurately the system understands its surroundings. This includes assessing the detection and classification of dynamic traffic participants, lane markings, traffic signs, traffic lights, road edges, and other relevant elements of the driving scene.

The aiData Auto Annotator supports this process by functioning as an alternative perception pipeline. Because it operates offline and is not constrained by real-time computational requirements, it can leverage more complex algorithms and additional processing steps than a production vehicle system. The resulting annotations provide a highly accurate representation of the environment, enabling direct comparison between the outputs of the system under test and an independently generated reference.

This allows developers to quantify detection performance, identify failures, and understand where perception errors originate, creating a robust foundation for benchmarking perception capabilities.

Vehicle-Level Validation

Perception accuracy alone does not determine whether an ADAS function performs correctly. A system may perceive its environment accurately yet still make suboptimal decisions, while in other situations imperfect perception may have little impact on the final vehicle behavior.

Ultimately, validation must answer a higher-level question: did the vehicle behave appropriately in the given situation?

Vehicle-level validation focuses on evaluating driving functions such as Adaptive Cruise Control (ACC), Autonomous Emergency Braking (AEB), Intelligent Speed Assistance (ISA), Lane Departure Warning (LDW), Emergency Lane Keeping (ELK), and Lane Keep Assist (LKA). Rather than evaluating individual detections, the goal is to compare the vehicle's observed behavior with the behavior that would be expected based on an independent reference of the scene.

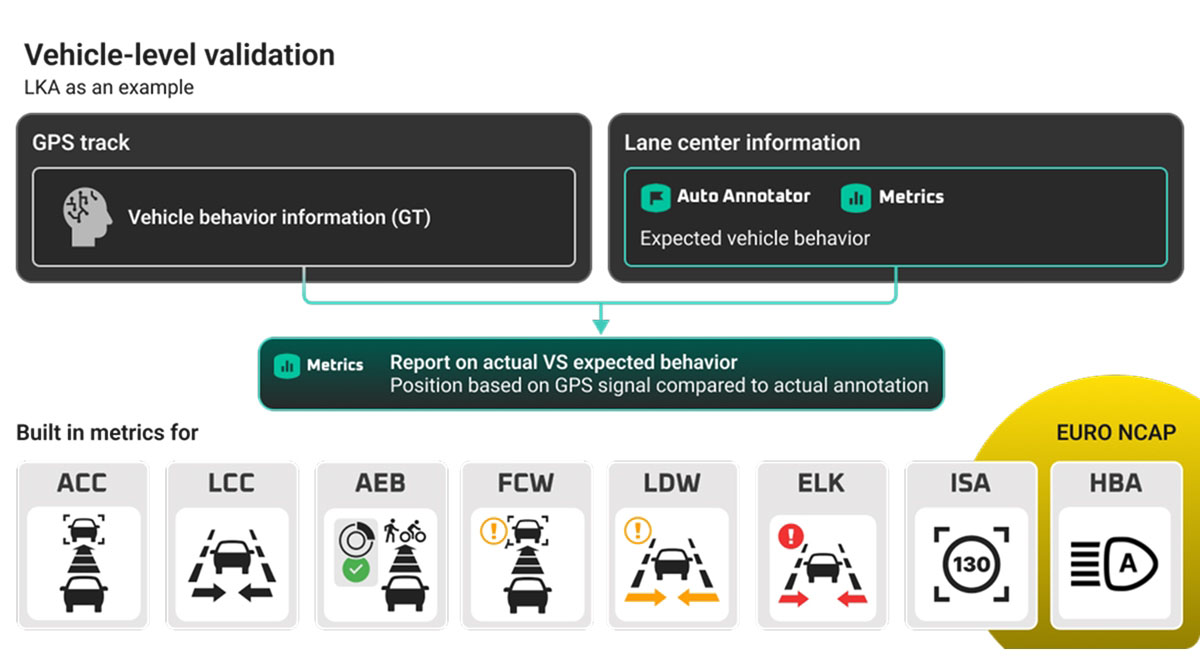

Take Lane Keep Assist (LKA) as an example. Validation requires understanding not only where the vehicle actually drove, but also where it should have driven. The vehicle's trajectory can be reconstructed from GNSS/INS measurements, providing a representation of the actual behavior. At the same time, the lane center generated by the aiData Auto Annotator provides a highly accurate representation of the lane geometry. Because the annotation pipeline operates offline and is not constrained by real-time processing requirements, it can generate a more precise representation of the road geometry than the production system itself. By comparing the vehicle's actual trajectory against this reference lane center, engineers can quantify lane-centering performance, measure deviations, and identify situations where the system failed to maintain the desired position. These insights can then be used to investigate root causes and drive improvements in future software releases.

The same principle applies to other ADAS functions. For AEB, validation can assess whether braking was initiated appropriately relative to the reference scenario. For ACC, it can evaluate whether safe following distances were maintained. By comparing actual vehicle behavior with independently derived expected behavior, developers gain an objective framework for measuring performance across large-scale datasets.
Together, perception-level and vehicle-level validation provide a more complete understanding of system performance. One focuses on how accurately the vehicle interpreted the environment, while the other evaluates how effectively it responded to that environment. Both perspectives are essential for building reliable ADAS and automated driving systems.

Continuous Validation for Every Software Release

The pace of software development has fundamentally changed. ADAS/AD software is no longer validated only at major project milestones. Modern development teams need confidence in every release candidate.

This requires validation processes that are as automated as the software pipelines that produce new builds. The aiData Metrics framework supports this transition by providing more than 150+ built-in metrics. Once the driving environment has been annotated, the platform can combine object trajectories, lane geometry, vehicle motion, GNSS/INS positioning data, synchronized CAN signals, and event information to evaluate system performance from multiple perspectives. This enables assessments ranging from safety-related metrics such as time-to-collision, following distance, braking timing, and collision risk, to vehicle-level indicators such as lane-centering accuracy, driving smoothness, and traffic-rule compliance. Performance can also be analyzed across different scenario categories, road types, environmental conditions, or software versions, helping teams identify regressions and measure progress over time.

An important advantage is flexibility. While regulatory requirements and NCAP assessments provide a common baseline, every OEM and supplier has its own safety goals, acceptance criteria, and development KPIs. The aiData framework allows organizations to supplement built-in evaluations with project-specific metrics, ensuring that all performance criteria can be assessed within the same traceable workflow. The result is a validation process that can operate continuously. New software releases can be benchmarked automatically, evaluation reports can be generated without manual intervention, and regression testing can become part of the standard development workflow.

Instead of spending weeks analyzing the impact of a software update, teams can obtain meaningful performance results overnight and focus their efforts on understanding and improving system behavior.

Validation Is Ultimately About Confidence

aiData addresses this challenge by providing an integrated pipeline that supports the complete validation lifecycle, from recording high-quality reference data to automated KPI reporting and benchmarking. By reducing the effort required to generate, manage, and evaluate validation datasets, the platform enables organizations to focus less on data handling and more on understanding system performance and improving vehicle behavior.

The organizations that bring safer driving functions to market fastest will not necessarily be those that collect the most data. They will be the ones that can transform raw sensor recordings into trustworthy validation evidence most efficiently. Validation is ultimately about confidence. Confidence that the collected data is accurate. Confidence that the selected scenarios are representative. Confidence that the reference data is trustworthy. Confidence that the reported metrics reflect real-world performance. And confidence that every software release is moving the system in the right direction.

By combining high-quality data collection, automated annotation, intelligent scenario discovery, full lifecycle traceability, and automated evaluation, aiData transforms raw recordings into validation-ready evidence at automotive scale. The result is not simply faster validation, but a more repeatable, objective, and evidence-driven approach to proving the safety and performance of ADAS/AD systems.
